OUR PRODUCTS
For 25 years, we’ve been dedicated to creating products
with the
user in mind.
Now, we proudly present Made-in-Japan quality.
A
revolutionary key system where you carry nothing at all.
For 25 years, we’ve been dedicated to creating products
with the
user in mind.
Now, we proudly present Made-in-Japan quality.
A
revolutionary key system where you carry nothing at all.

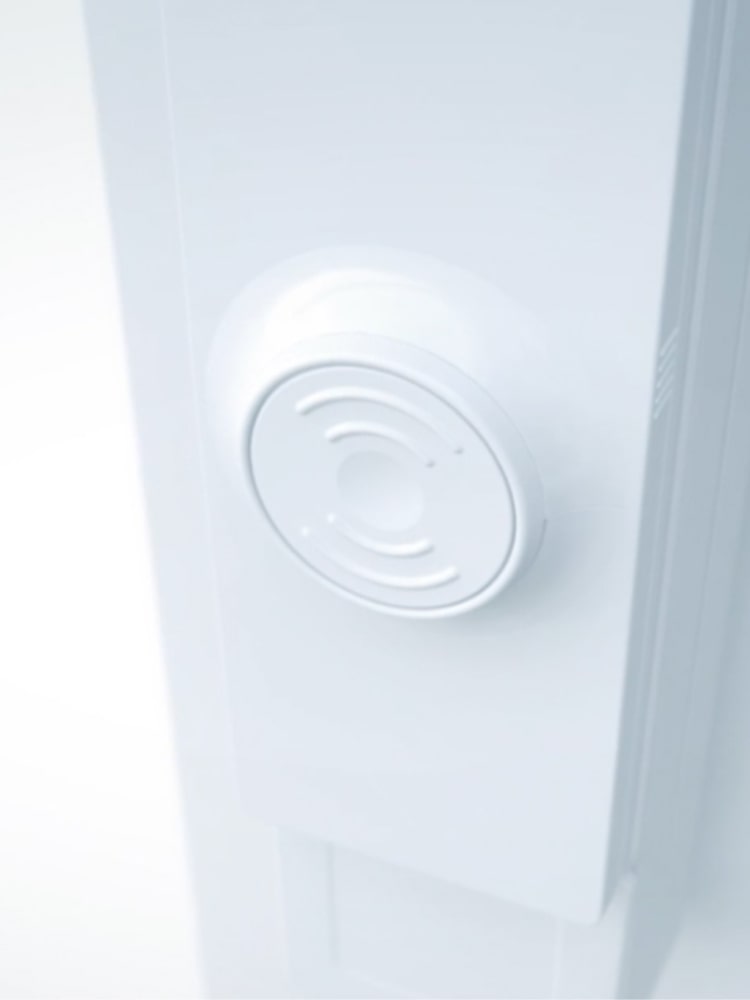

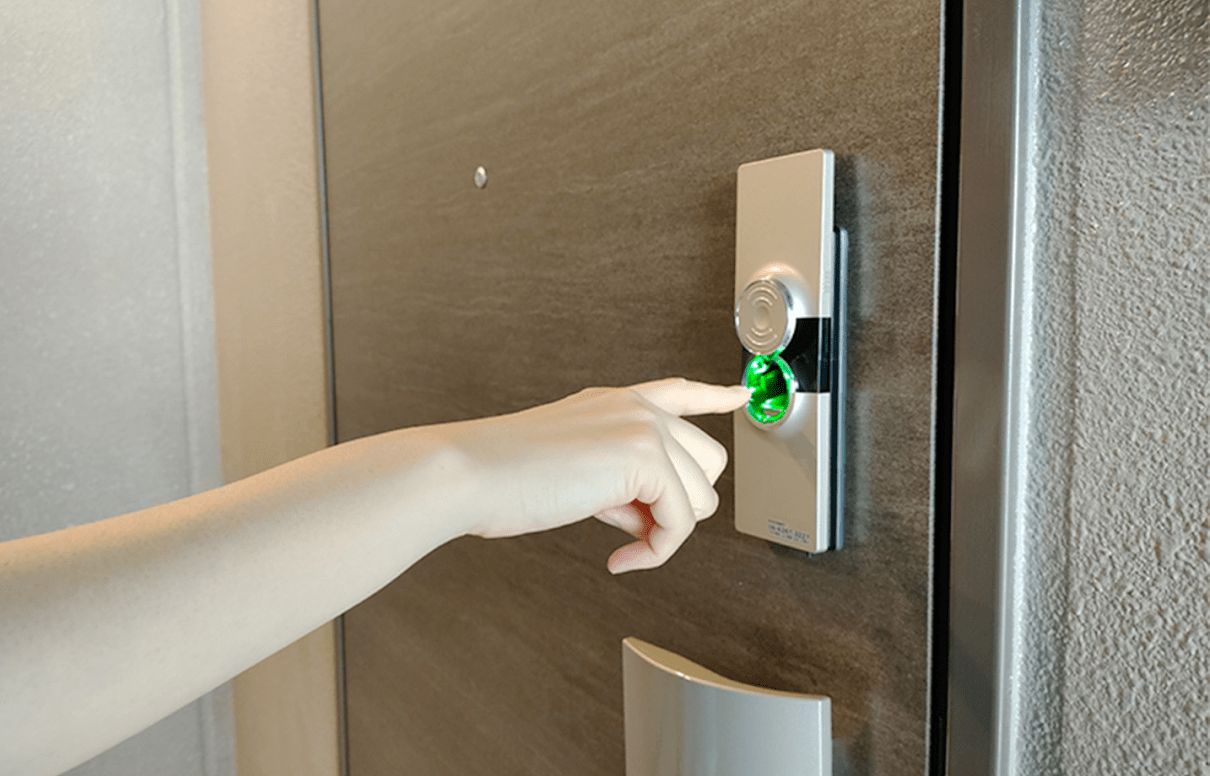

A smart lock with blood vessel
authentication that solves home
security
issues with just one finger.
Adopts the recognition method with the
lowest risk of forgery,
duplication, loss,
or leakage.
Designed to be resistant to environmental
and physical
conditions, such as skin
irritation or sweating. This ensures
reassurances that allow you to use semi-
permanently.
AQUBIO / AQUBIO H (Built-in Door TYPE)
| Applicable Lock Type | Uses a company-designated lock case |
|---|---|
| Applicable Cylinder | Uses a company-designated cylinder |
| Applicable Backset & Door Thickness | Door thickness range: 36–40 mm |
| Dimensions |

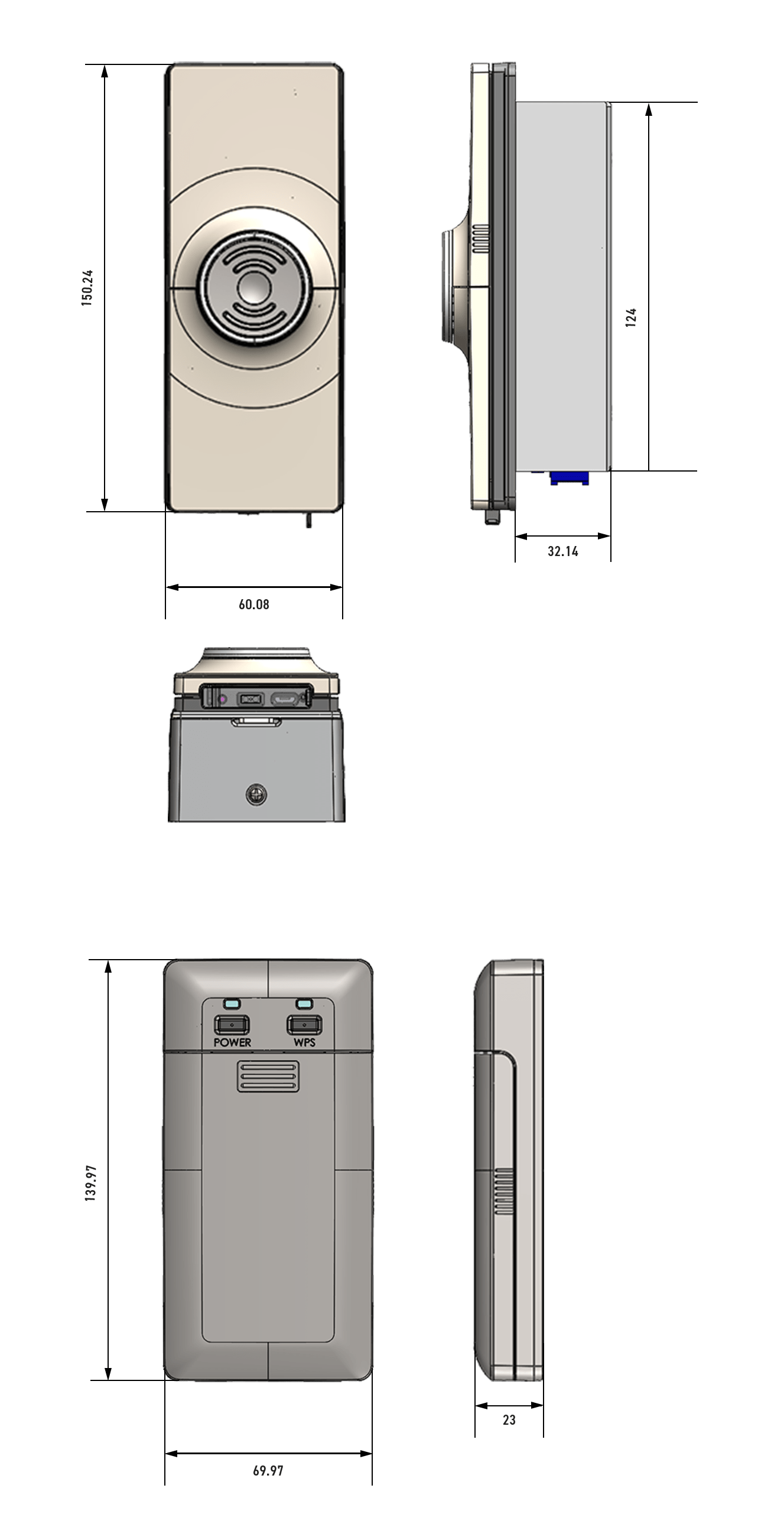

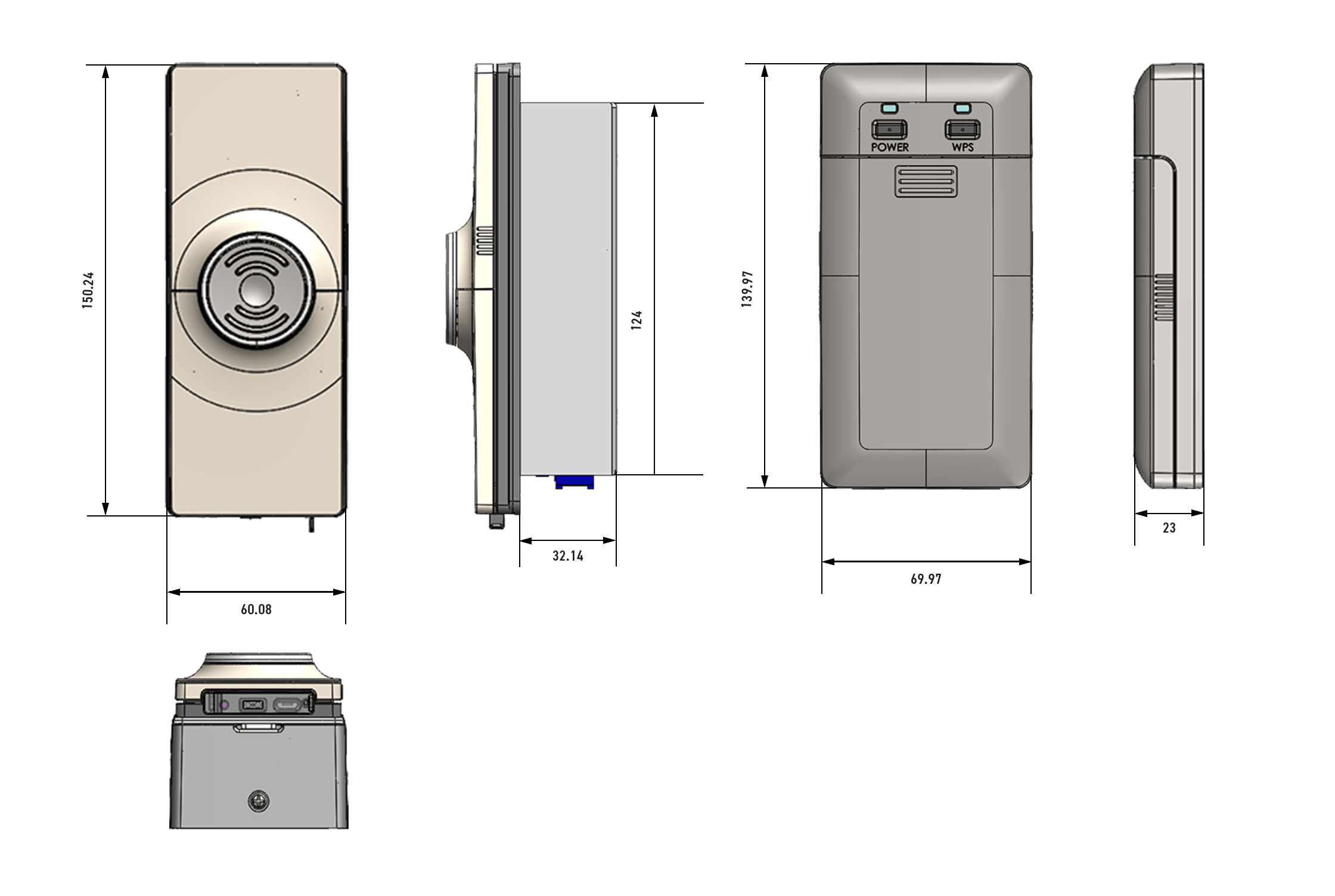

Reader Unit: 150 mm (H) × 58 mm (W) × 47.1 mm (D) Door surface exposed part: 24.2 mm Door interior embedded part: 34.1 mm Excludes rubber and protruding parts Electromechanical Unit: 140 mm (H) × 70 mm (W) × 23 mm (D) |
| Authentication Time | Approximately 0.8 seconds |
| False Rejection Rate (FRR) | 1% or lower |
| False Acceptance Rate (FAR) | 0.0001％(1 in 1,000,000) |
| Handedness | None (compatible with both left-hand and right-hand orientations) |
| Power Specifications | 4 AA alkaline batteries |
| Emergency Power Supply | Mobile battery (using USB Type-B connector) |
| Battery Life | Approximately 1 years at 20°C (based on 10 operations per day) |
|
Operating Temperature and Humidity Range |
-10°C to 50°C / 30% to 90% RH (non-condensing) |
| Waterproof Performance |
Outdoor side: Equivalent to IPX5 (Protection against water
jets) Indoor side: Equivalent to IPX4 (Protection against splashing water) |
|
Dedicated Smartphone App Requirements |
iOS: Version 10 or higher Android: Version 5 or higher To receive the PIN code, it is necessary to be able to receive SMS messages. (This depends on the country's telecommunications provider.) |
*AQUBIO H includes a healthcare measurement function
Close

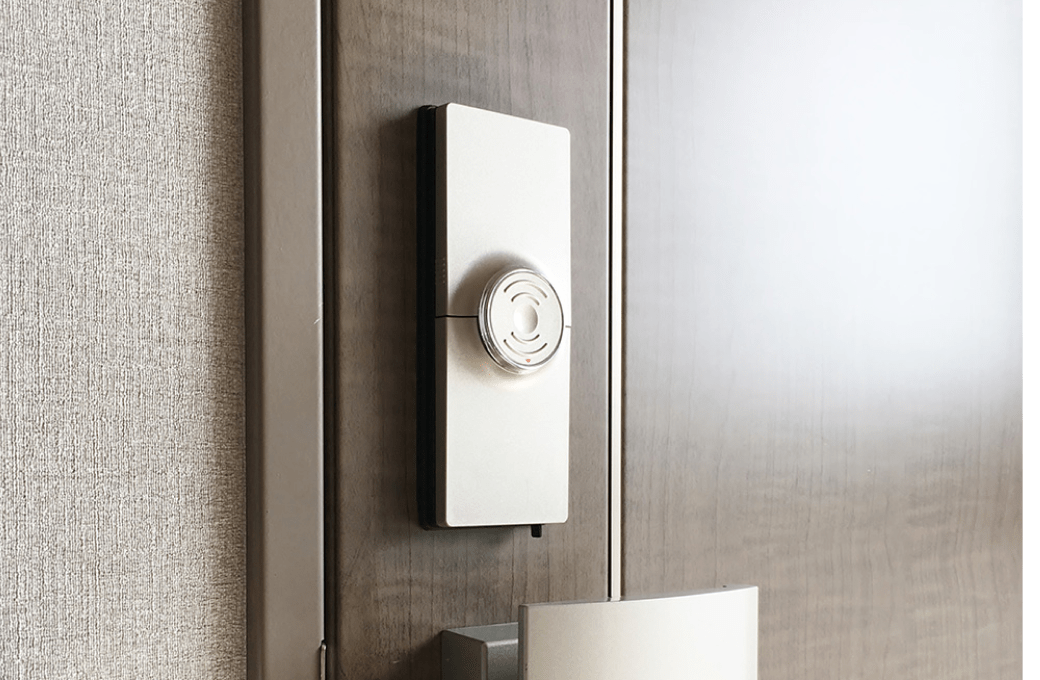

AQUBIOⅡ(Direct attachment TYPE)
| Applicable Lock Type | LA・LAF・MA・DA・DAF |
|---|---|
| Applicable Cylinder | U9・PR・JN・UR |
| Applicable Backset & Door Thickness |
Applicable Backset：64mm Door thickness range: 36–40 mm |

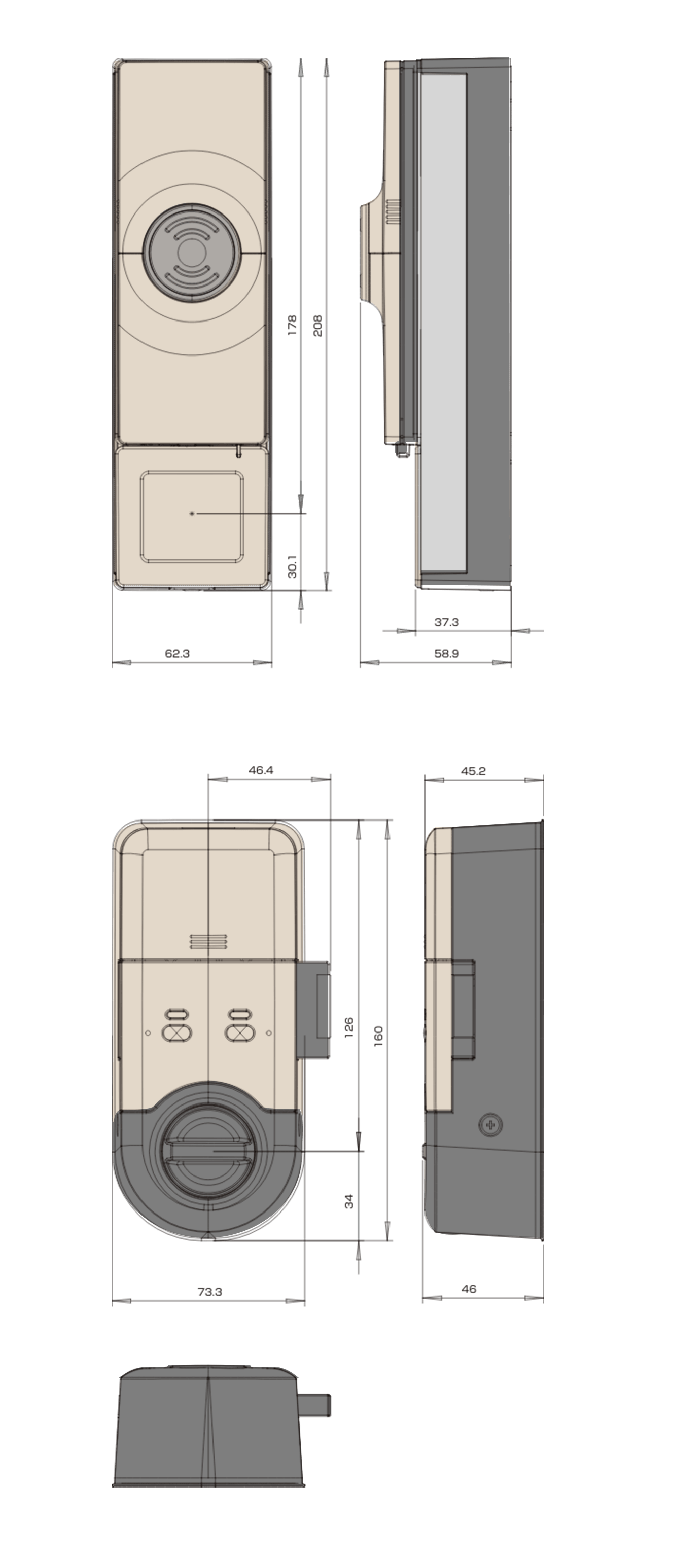

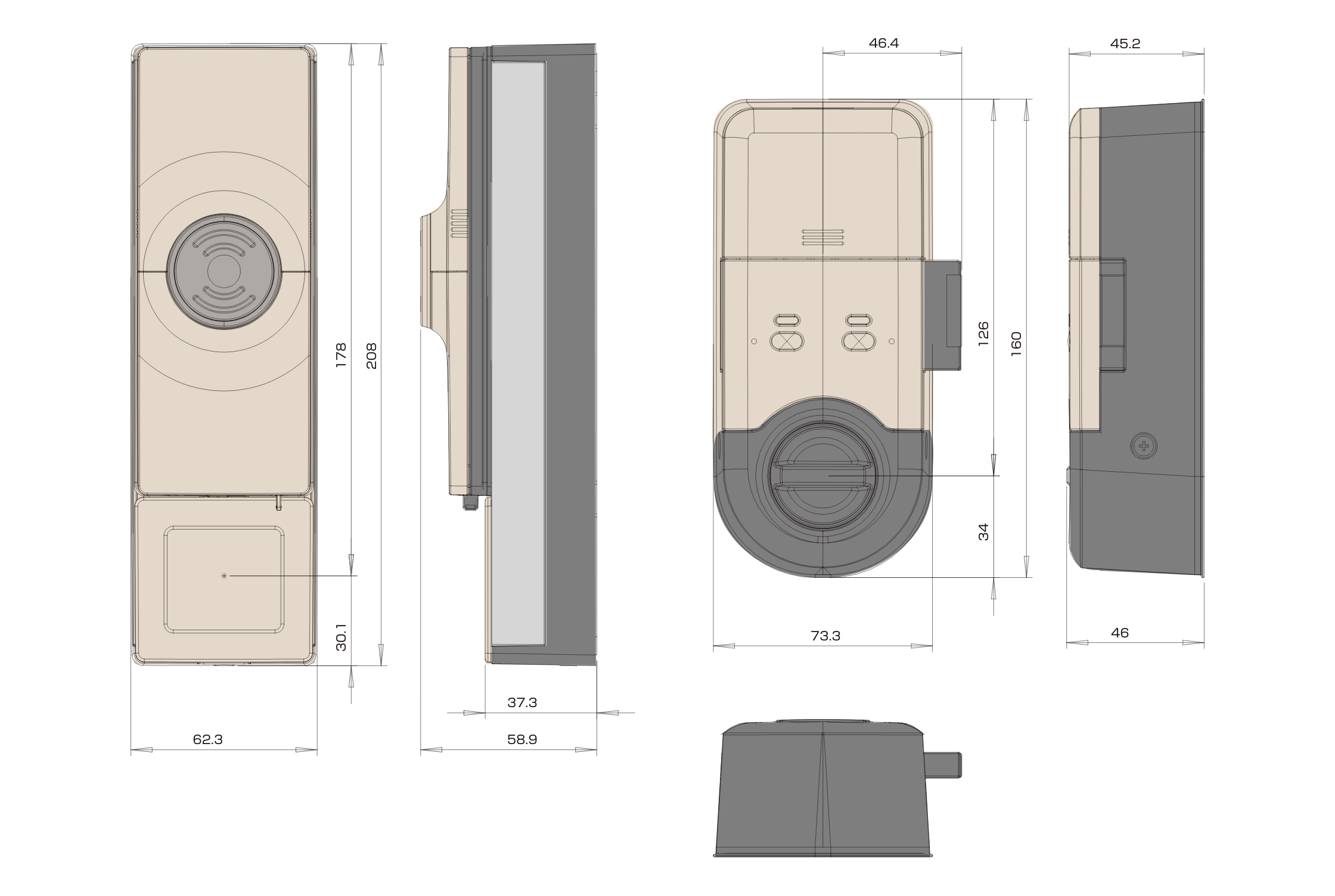

| Dimensions |
Reader Unit: H208mm(H)x W62.3(W) x D58.8(D) Electromechanical Unit : 160.0mm(H) x 73.3mm(W) x 46.0mm(D) （Magnet Section W9.7mm） *Includes waterproof gasket section |
| Materials and Surface Finish |
Materials : ABS resin or Die-cast Surface Finish : Painted finish or Zinc plating, etc. |
| Wi-Fi Standard | 802.11b/g/n |
| Communication Method | Bluetooth 4.0LE |
| Color Variations | Champagne Gold (painted finish), Black (painted finish) |
| Authentication Media | Finger blood vessels, FeliCa card (company-designated) |
| Number of ID Registration |
Fingers : Up to 20 fingers (combined total for administrators and general users) Cards : Construction Card 1 Management Card (Batch Registration Card) 1 Vacant Room Cards 20 User Cards (Registration/Deletion Card) 1 Resident Cards: 10 Number of Connectable Smartphones: Up to 10 smartphones (at least 1 must be registered with administrator privileges) |
| Authentication Time | Approximately 0.8 seconds |
| False Rejection Rate (FRR) | 1% or lower |
| False Acceptance Rate (FAR) | 0.0001％(1 in 1,000,000) |
| Handedness | Yes |
| Power Specifications | 4 AA lithium battery |
| Emergency Power Supply | Mobile battery (using USB Type-B connector) |
| Battery Life | Approximately 1 years at 20°C (based on 10 operations per day) |
|
Operating Temperature and Humidity Range |
-10℃～ 50℃／ 20 ～ 80%RH (non-condensing) |
| Waterproof Performance | Outdoor side: Equivalent to IPX5 (Protection against water jets) |
|
Dedicated Smartphone App Requirements |
iOS: Version 10 or higher Android: Version 5 or higher To receive the PIN code, it is necessary to be able to receive SMS messages. (This depends on the country's telecommunications provider.) |
Close

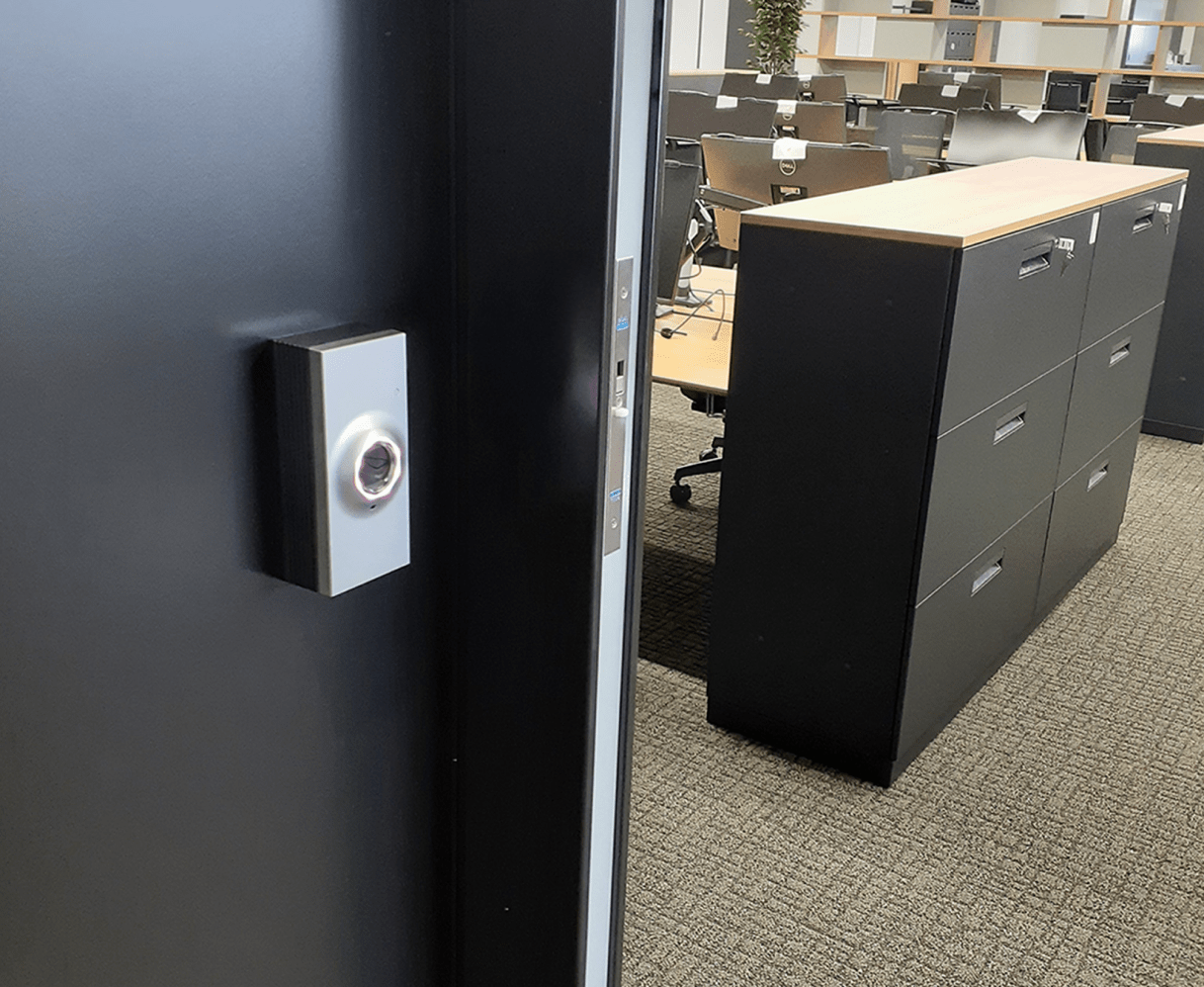

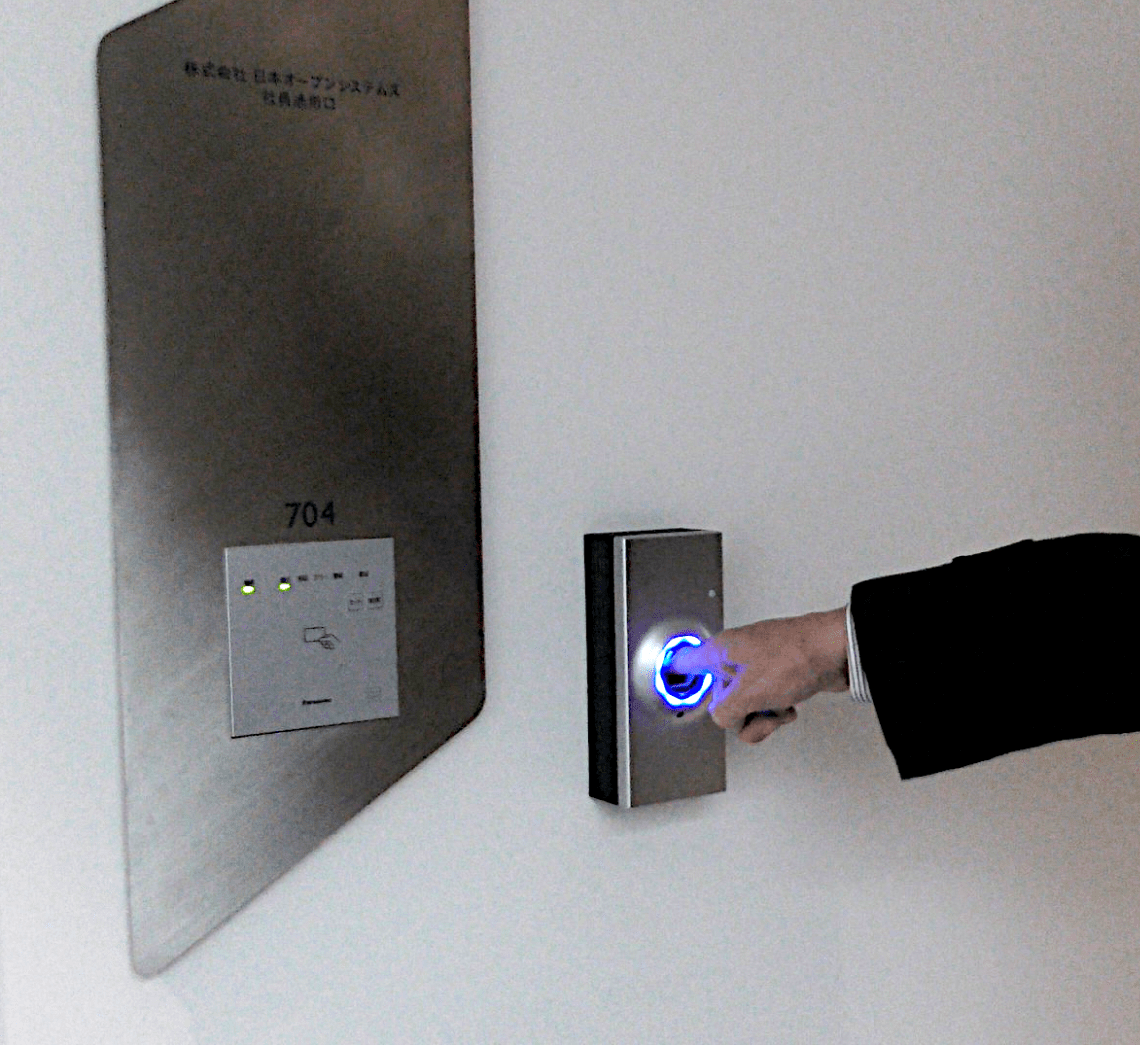

A masterpiece boasting multifunctionality
capable of managing
all aspects of building
security.
By fully leveraging
the unique characteristics
of "blood vessels authentication,"
it protects
individuals and property while creating a safe
and comfortable building environment.
By introducing Bio-COBRA, various problems associated
with
managing shared areas can be addressed,
enhancing the overall
security of the building.
Additionally, integration with
residential facilities such
as elevators and parcel delivery
lockers is expected to
further increase the value of the
property, making it
more attractive and high-value.

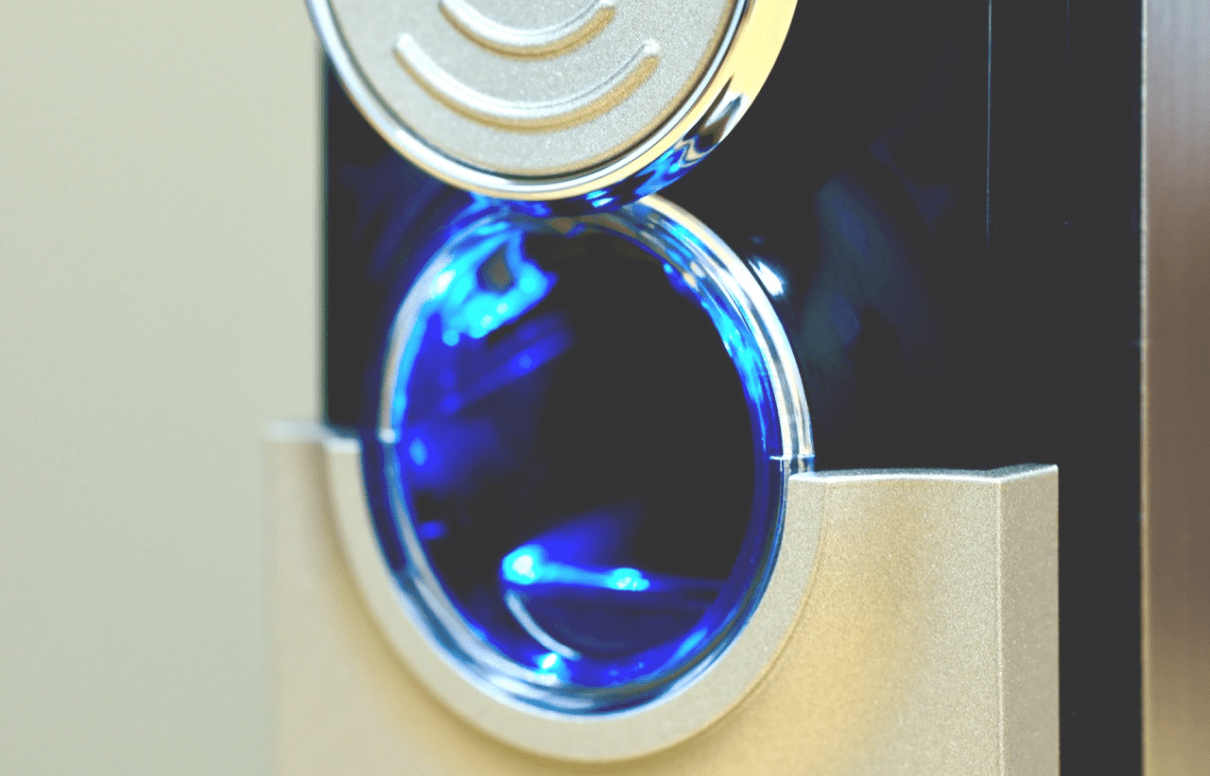

Safe for use by many residents collectively.
Equipped with an
automatic disinfection feature
for the authentication area.
Additionally, the system is designed to
automatically
open the authentication section
when a finger is approached,
enhancing both
hygiene and convenience.
Bio-COBRA
| Number of ID Registration | Fingers : Up to 5,000 fingers (index, middle, and ring fingers) on a standalone basis, and up to 20,000 fingers with the addition of a central unit Cards : Up to 2,500 cards on a standalone basis, and up to 10,000 cards with the addition of a central unit |
|---|---|
| Power Specifications | DC12V~24V or POE(48V) |
| BLE Specifications | Bluetooth 5.2 |
| Operating Temperature and Humidity Range | -10°C to 50°C / 30% to 90% RH (non-condensing) |
| WIFI Specifications | Wireless LAN Standards； IEEE802.11b/ g/n (IEEE802.11-2012) Compliance: (2.4 GHz band channels 1-13) Single stream； 1 X 1 Authentication Method； WPA2-PSK Encryption Method； AES Wireless LAN Connection； Manual connection via smartphone Communication Standards； Retantion of 1Pv4、1Pv6、 and TCP/IP Stack |
| Interface | Ethernet（PoE Support）x1、 Non-Voltage Contact Input（2-pins）x1、Non-Voltage Contact Output（2-pins）x1、 JEMA（Input/Output Pins）x1、Power Input(DC9~24V) x 1 |
| (1)False Rejection Rate (FRR) | 1% or lower |
| (2)False Acceptance Rate (FAR) | 0.0001％（1 in 1,000,000） |
| (3)Authentication Time | Approximately 0.8 seconds |
| (4) Felica Response Distance | About 5mm from the device housing |

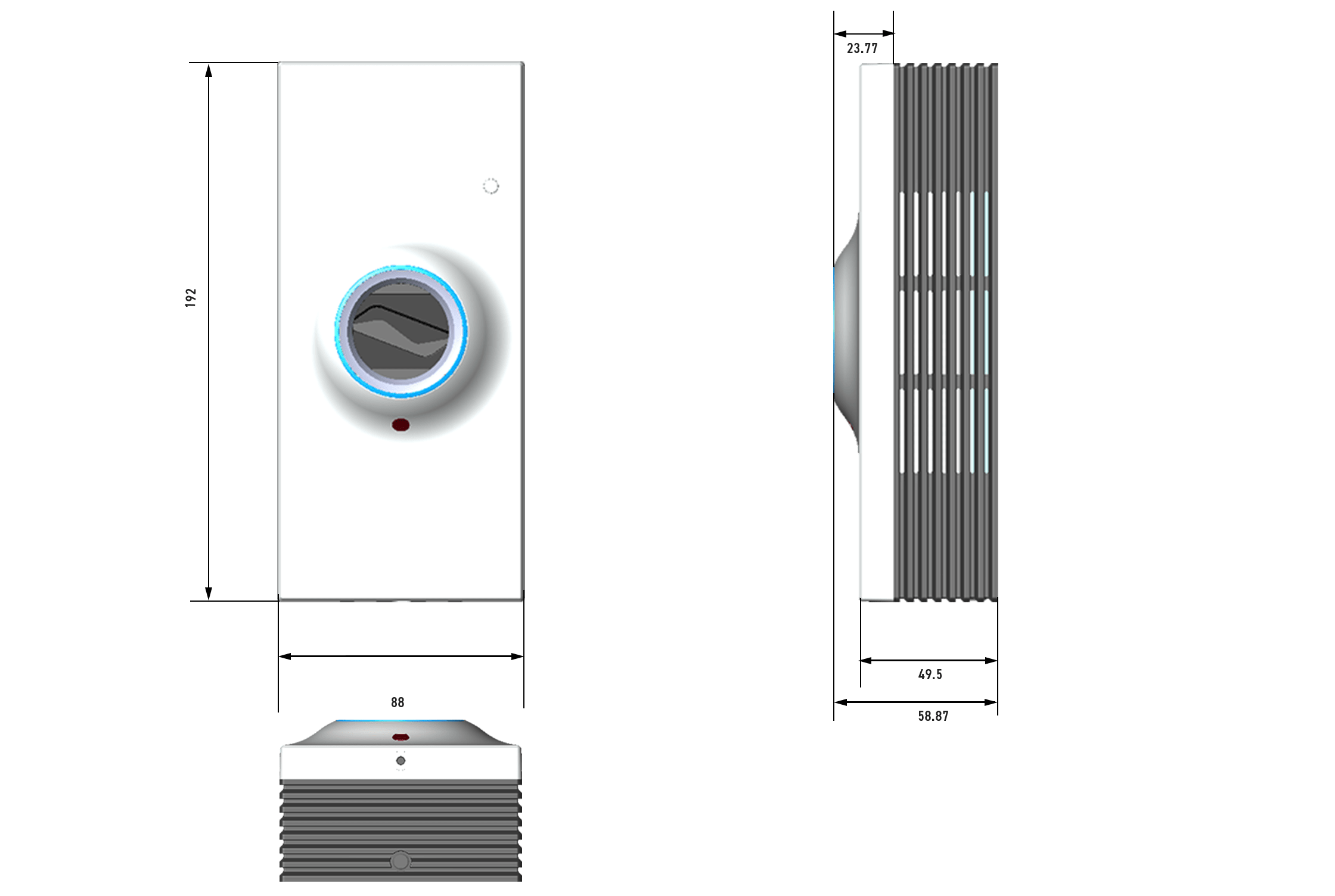

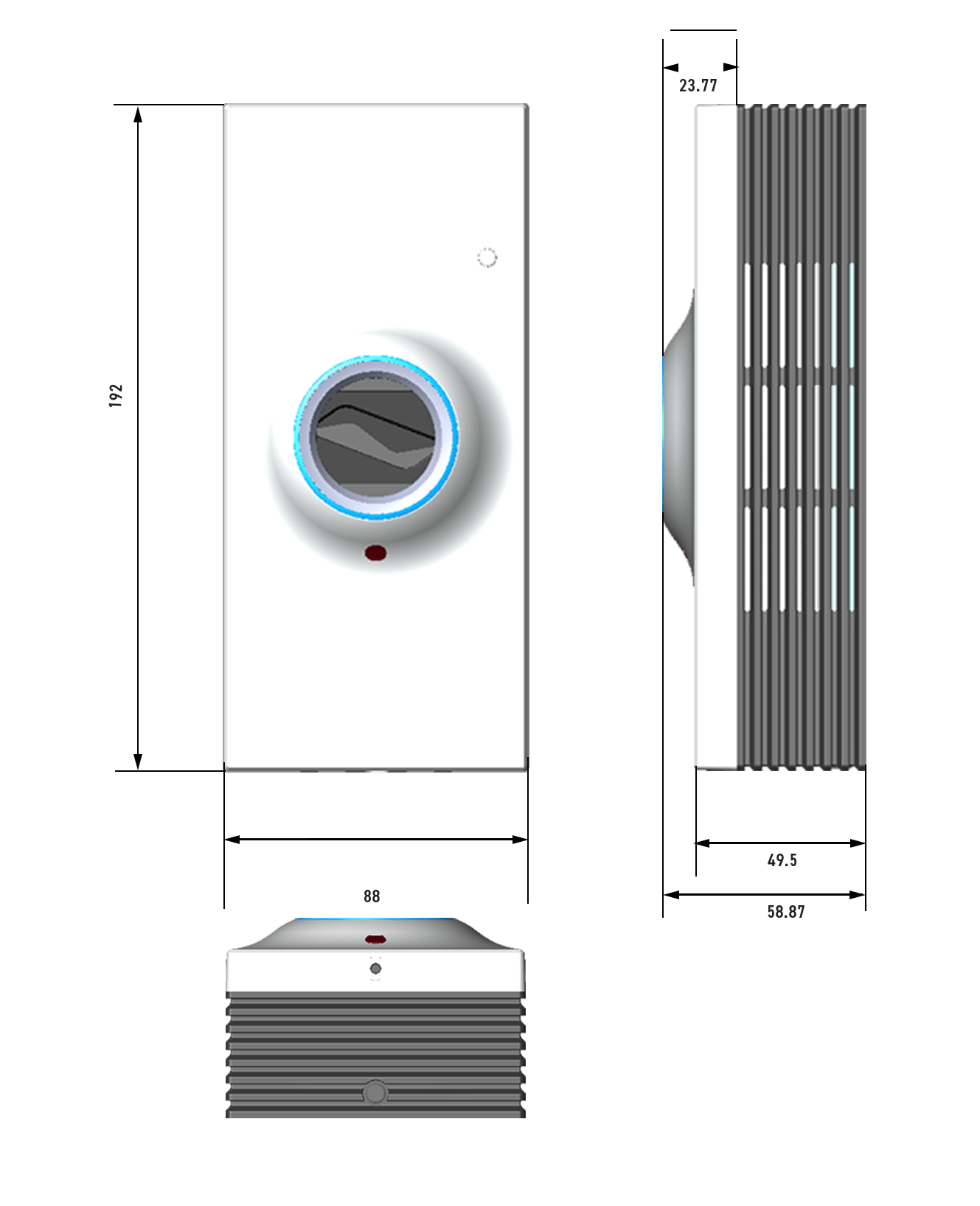

| Outside
Dimentions(mm) TYPE-A(Built-in Door Type) |
192×88×21.8 (Excluding protrusions) |
| TYPE-B（Direct attachment type） | 192×88×59 (Excluding protrusions) |
Close

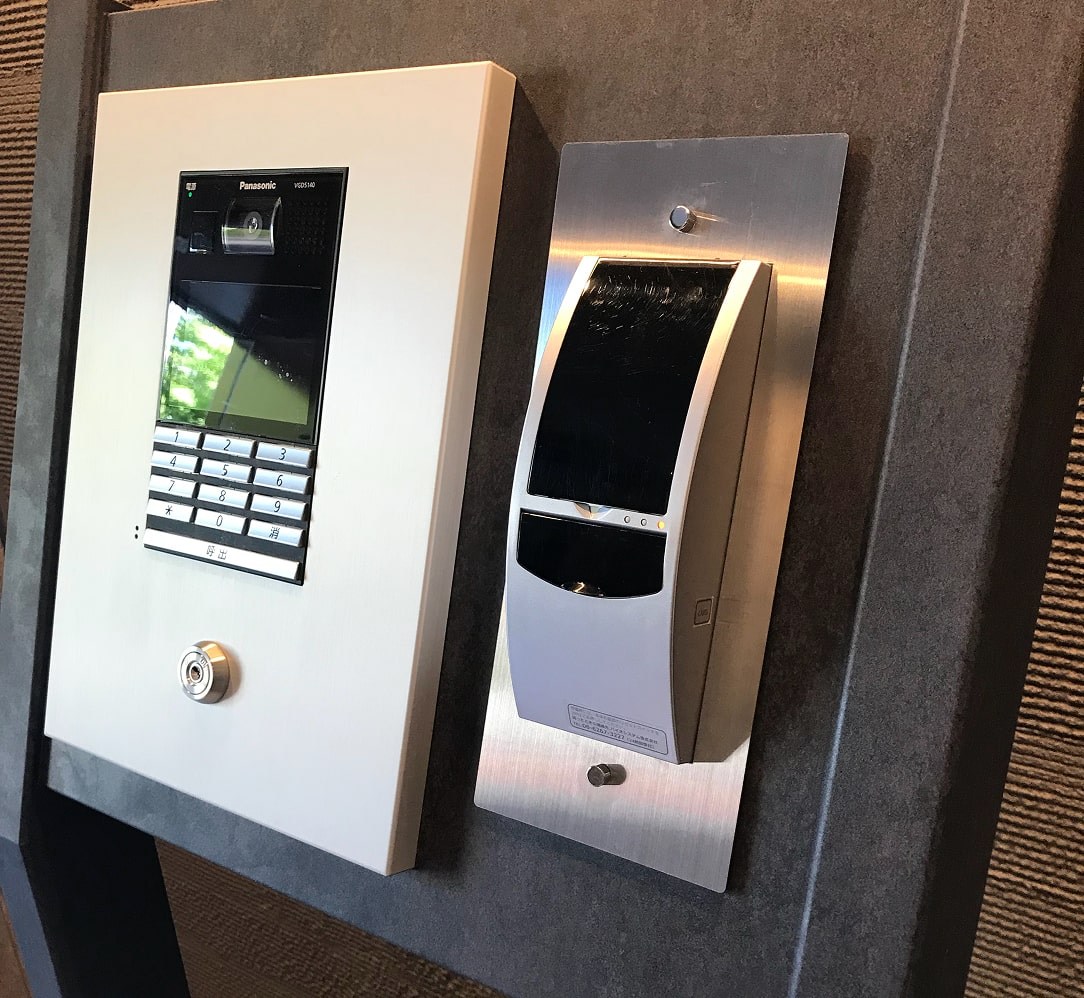

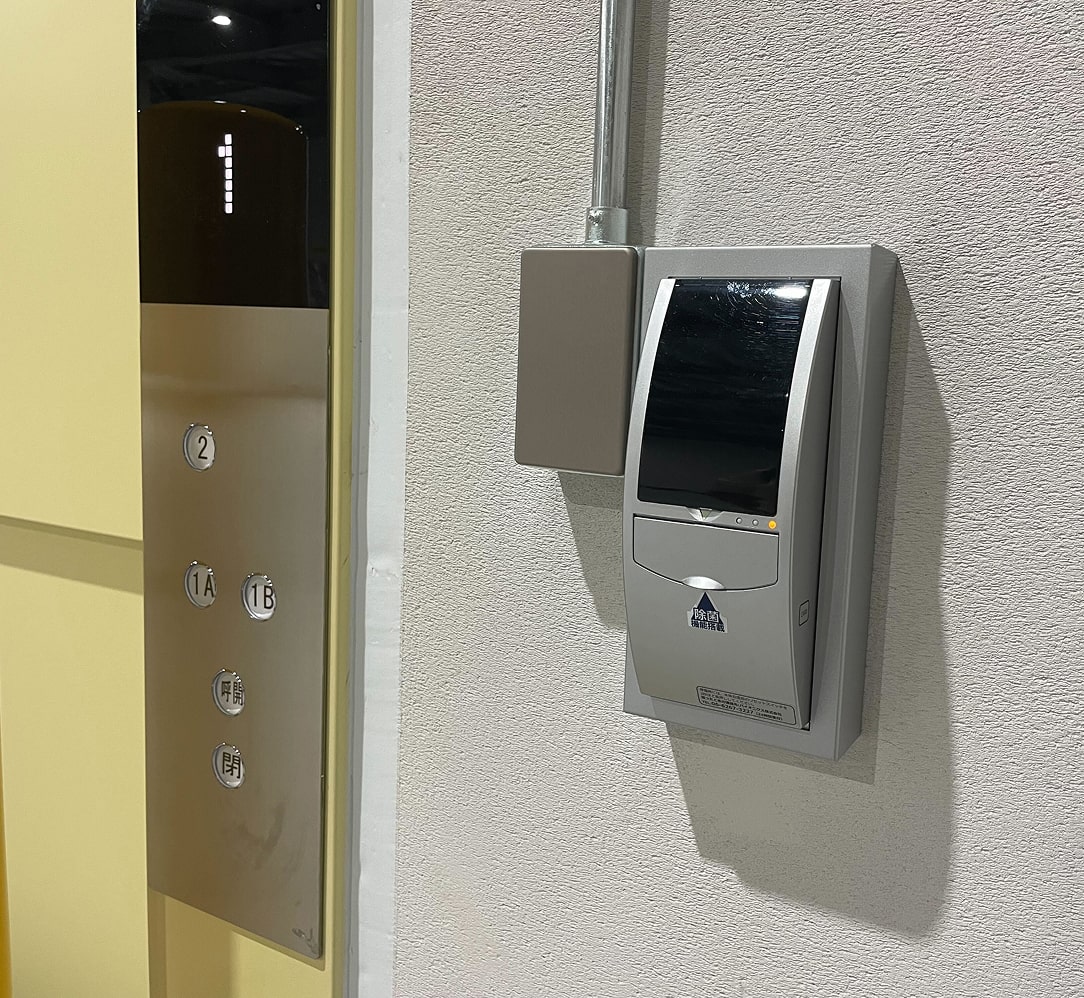

Since its release in 2015, this long-selling
product has been used by many customers.

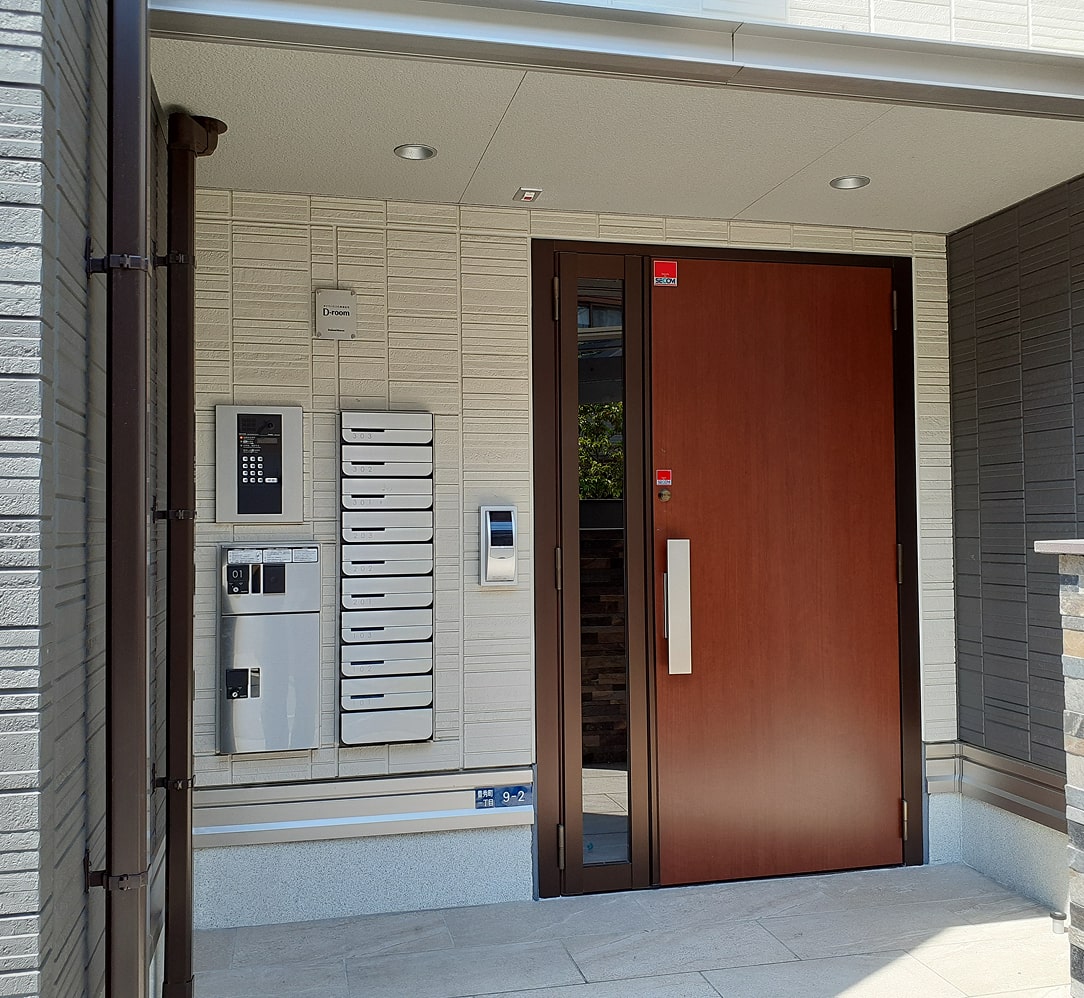

By being installed at the entrance of apartment buildings,
it allows residents to go out without carrying anything.
It can collectively register the fingerprints of many users,
such as for freight elevators and parking facilities in general corporations,
and is also equipped with an automatic sterilization function.

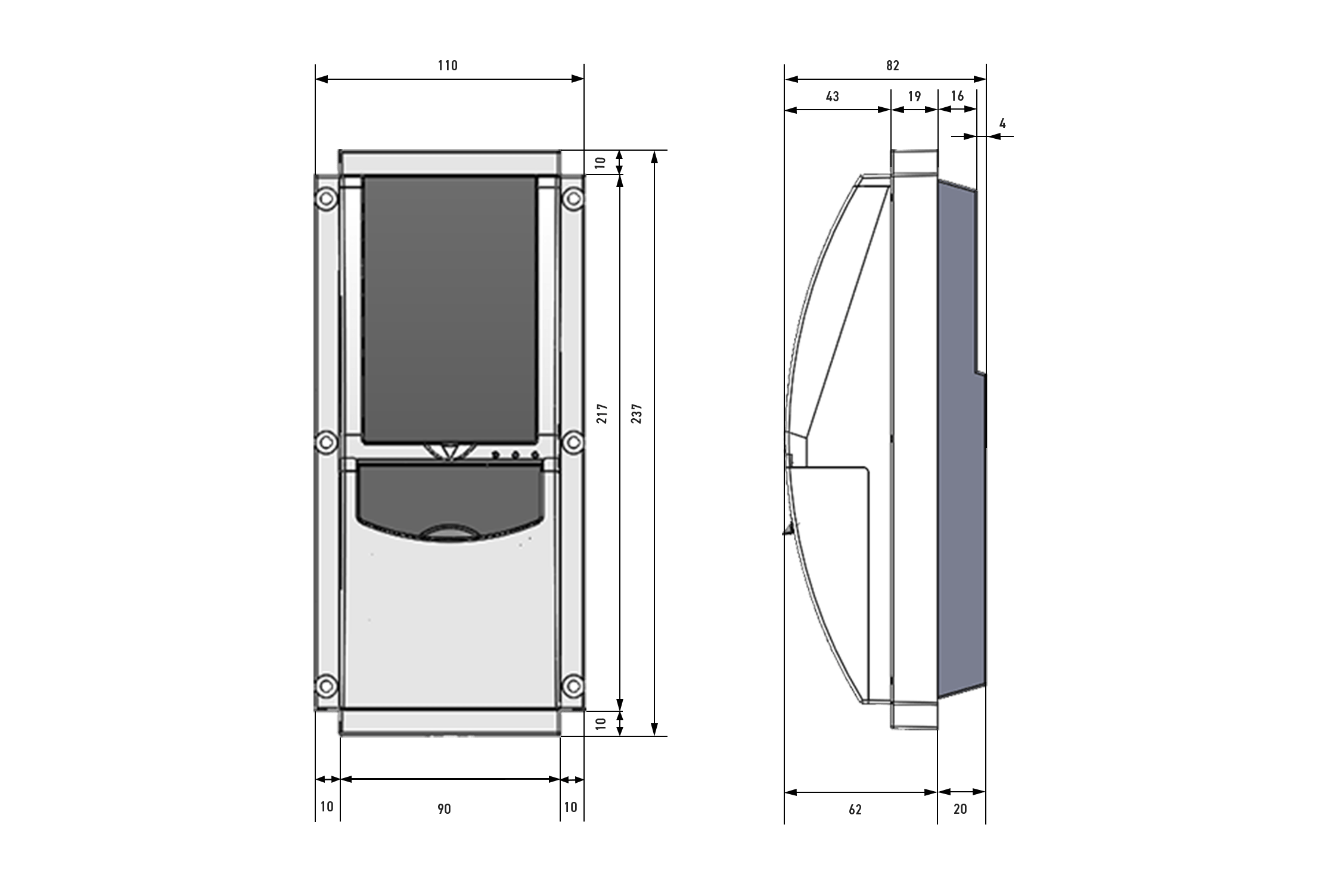

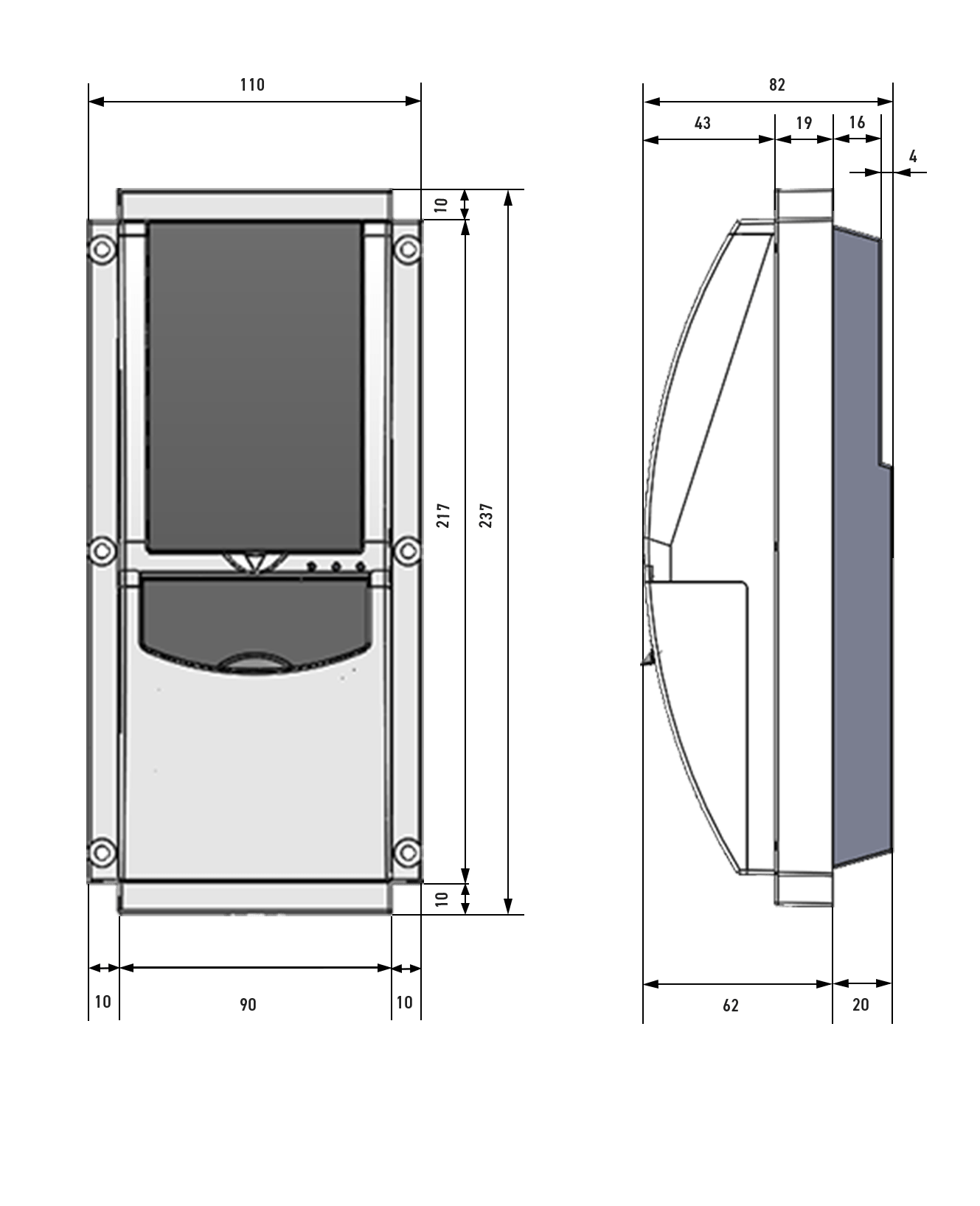

VA-300
| Number of Fingers Registration | Up to 20 fingers (By using the optional keypad, it can support up to 9,600 fingerprints.) |
|---|---|
| Authentication Media | Finger blood vessels, FeliCa card (company-designated) |
| Cards |
Compatible with construction use, management use (bulk registration cards, vacant room cards), and user use (registration/deletion cards, resident cards). For details such as the number of units, please contact us. |
| Authentication Time | Approximately 1 second |
| ID Number | 2 to 8 digits |
| Power Frequency | 50/60Hz±1Hz |
| Interface | RS-232C、RS-485、Ethernet、Voltage-free contact output, photocoupler input |
| Power Consumption | Under 20W |
| Power Supply Voltage | AC100V±10% |
| Operating Temperature and Humidity Range |
-10℃～ 50℃／20 ～ 80%RH (non-condensing) |
| False Rejection Rate (FRR) | 1% or lower |
| False Acceptance Rate (FAR) | 0.0001% |
Close
By fully leveraging the characteristics of "blood vessel
authentication," this system not only functions as a high-security key
but has also evolved into a comprehensive management system through
network integration.
With this next-generation blood vessel authentication device, we
deliver a safe, secure, convenient, and comfortable lifestyle, all
starting with just one finger.
